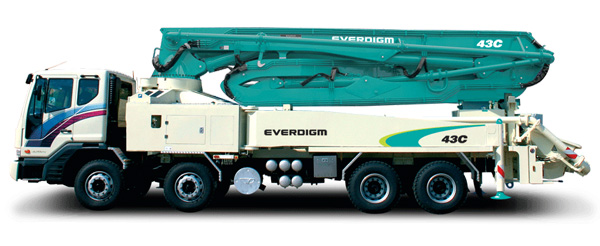

| Boom | |||
| Boom type | - | 4-Section R-Type | |
| Max. Vertical Reach |
ft.in(m)
|
138|"1"(42.1) | |
| Max. Horizontal Reach |
ft.in(m)
|
125|"(38.1) | |
| Depth Reach |
ft.in(m)
|
96|"10"(29.5) | |
| End Hose Length |
ft.in(m)
|
9|"8" (3) | |
| Delivery Pipe diameter |
in(mm)
|
5" (125) | |
| Slewing Range |
�?
|
360 | |
|
Each Section Lenght
|
1st
|
ft.in(mm)
|
33|"6"(10,200) |
|
2nd
|
ft.in(mm)
|
30|"10"(9,400) | |
|
3rd
|
ft.in(mm)
|
30|"6"(9,300) | |
|
4th
|
ft.in(mm)
|
30|"10"(9,400) | |
|
5th
|
ft.in(mm)
|
||
| Concrete Pump | |||
| Max. Theoretical Concrete Output |
yd3/h(m3/hr)
|
196(160) | |
| Max. Theortical Concrete Pressure |
psi(bar)
|
1,233(85) | |
|
Delivery Cylinder
|
Inner Diameter
|
in(mm)
|
9" (pi 230) |
|
Stroke
|
in(mm)
|
83"(2,100) | |
|
Drive Cylinder
|
Cylinder Diameter
|
in(mm)
|
5 1/2"(Φ140) |
|
Rod Diameter
|
in(mm)
|
3 1/8"(Φ80) | |
|
Rated Pressure
|
psi(bar)
|
5,075 (350) | |
|
Proof Pressure
|
psi(bar)
|
7,250 (500) | |
| Transfer Tube |
-
|
S-Valve | |
| Hopper | |||
| Volume of Hopper |
gal( �?? )
|
158(600) | |
| Permissible Slump |
in(cm)
|
3"~9.8"(8~25) | |
| Max. Aggregate Size |
in(cm)
|
Max. 1 ½" : (40) | |
| Agitator | Driven by Powerful 2 unit Hydraulic Motors |
||
| Outriggers | |||
| Front outrigger | L-R front telescope diagonally / telescope and extend down |
||
| Rear outrigger | L_R rear swing out and extend down |
||
| Overall Specifiacation | |||
| Chassis |
-
|
DAEWOO M9ASF | |
| Overall Length |
ft.in(m)
|
44|"6" (13,580) | |
| Overall Width |
ft.in(m)
|
8|"2" (2,495) | |
| Overall Height |
ft.in(m)
|
13|" (3,950) | |
| Wheel base |
ft.in(m)
|
6|"2"+12|"4"+4|"5" (1,880+3,780+1,350) | |
| Gross vehicle weight |
kg
|
31,960 | |
| Drive Type |
-
|
8 X 4 | |
| Engine Model |
-
|
DAEWOO DV11 | |
| Max. Engine Power |
ps/rpm
|
420/1800 | |
| Max. travel speed |
km/hr
|
99 | |
| Tire | Front |
-
|
12R22.5-16PR |
| Rear |
-
|
12R22.5-16PR | |
