PERFORADORA HIDRAULICA

Descripción

Hole Diameter Range  4.5” - 7” (115 - 178 mm)
DTH Hammer Range  4”, 5”, 6” (102, 127, 152 mm)
Drill Tube Diameters  3.5”, 4”, 4.5” (89, 102, 115 mm)
Drill Tube Length  13’, 16’, 20’ (4, 5, 6 m)
Max. Hole Depth  180’ (55 m)
Engine Output  328 kw (440 hp) / 1,800 rpm
Air Delivery  883 cfm (25 m³/min)
Air Pressure  Two Stages Screw Type, 25 bar
Transport Weight  54,013 lbs (24,500 kg)
Transport Width  8.2’ (2,500mm)

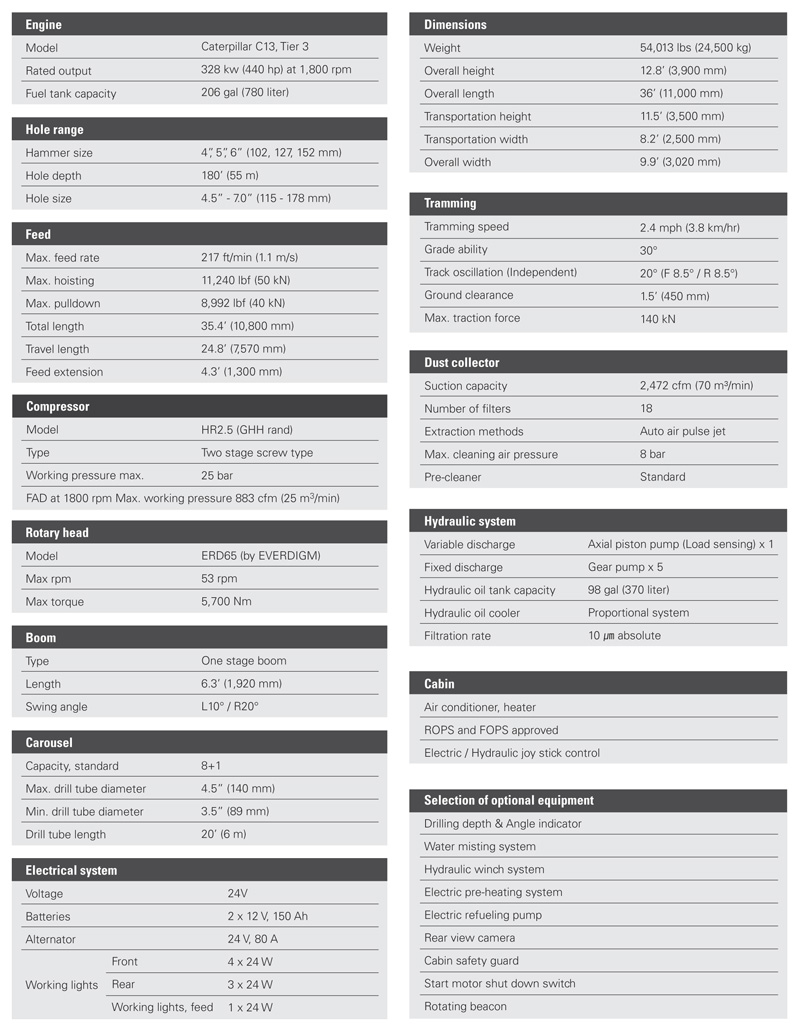

Especificaciones
